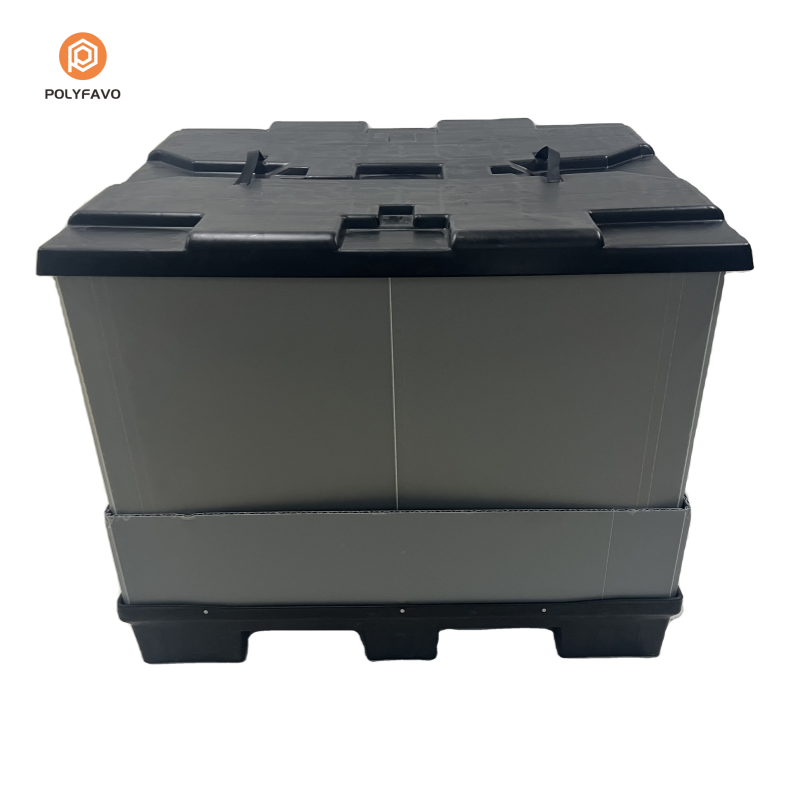

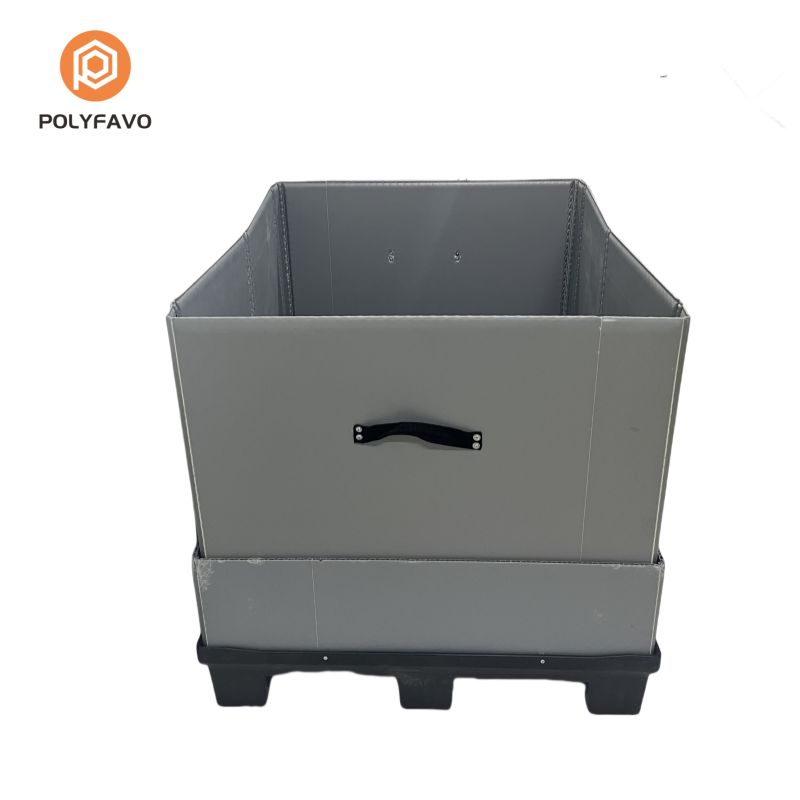

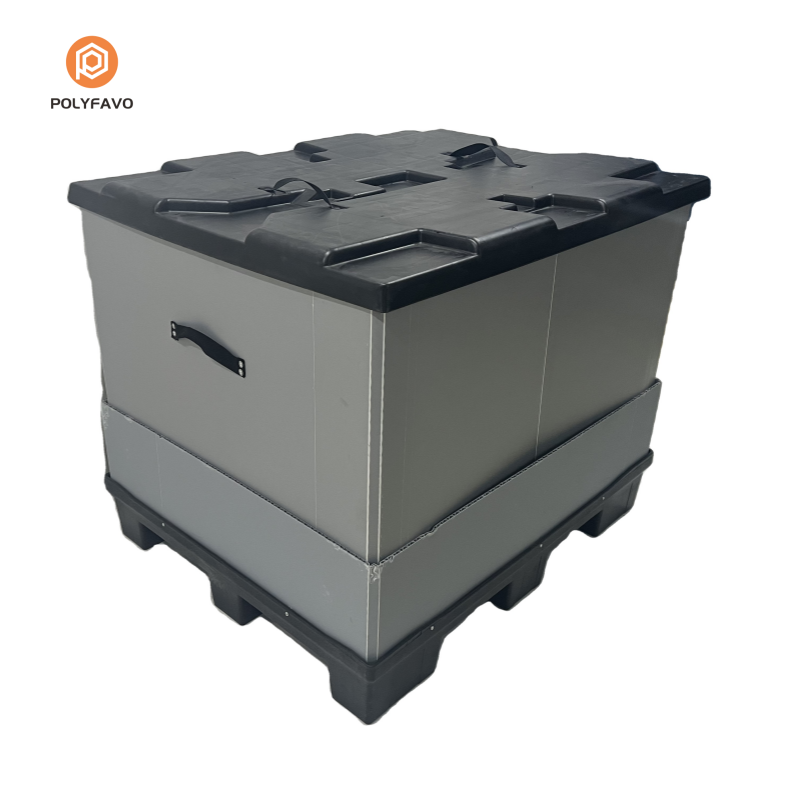

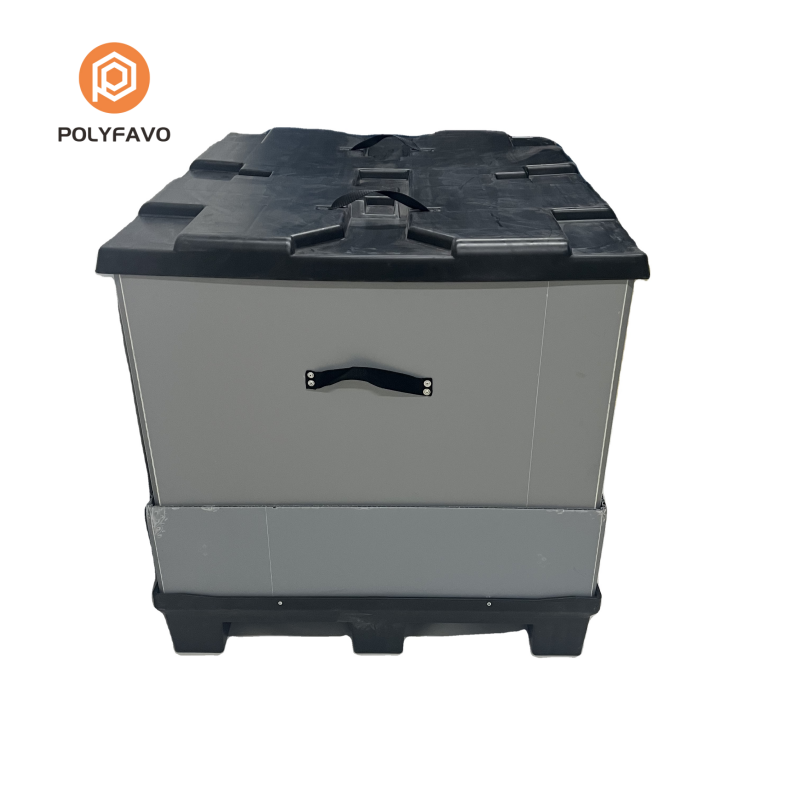

Pallet Box with Collar Sleeve
Your Innovative Packaging Solution
Plastic Pallet Sleeve Boxes with Lid are reusable storage and transportation containers crafted from robust HDPE and PP plastics. These boxes are designed to be placed over pallets, ensuring enhanced stability and safeguarding goods during storage and transit. Their foldable nature allows for convenient storage when not in use.
- Overview
- Recommended Products
The Plastic Pallet Container, also known as Plastic Gaylord Box, bubble guard box, plastic gaylord box, or collapsible pallet box, is highly robust. Ours, a collapsible plastic pallet box, is crafted from scratch-resistant polypropylene. This material makes the box smooth, facilitating easy cleaning. We offer competitive prices and maintain large inventories. As a bulk corrugated plastic gaylord containers manufacturer, you can purchase directly from our factory at a low cost. We provide wholesale of cheap collapsible plastic pallet boxes.
This innovative and unique collar pallet sleeve will help fix the collapsed sleeves.
We have a diverse range of foldable pallet boxes, available in both solid and ventilated styles. These specific pallet boxes are designed for storing and distributing heavy and bulky items. They are equipped with either runners or pallet feet, enabling transportation via forklift trucks or pallet trucks.
Sleeve pack shipping systems have been gaining remarkable popularity within the logistics and packaging sectors, and this is primarily attributed to their wide - array of benefits. Here are some of the core advantages of employing sleeve pack shipping systems:
1. SpaceEfficiency
Sleeve packs stand out for their collapsible design. When not in use, they can be folded flat, which significantly optimizes storage and transportation space. Empty sleeve packs consume far less space compared to traditional rigid containers. This space - saving feature directly translates into substantial cost savings in storage and return logistics.
Moreover, sleeve packs offer additional space - related advantages. Their sleeve walls are relatively thin when contrasted with regular plastic Intermediate Bulk Containers (IBCs), resulting in greater internal capacity. Additionally, they are engineered for stacking, enabling more efficient utilization of warehouse and trailer space, especially for loads that would otherwise be challenging to arrange.
2. Cost - Effectiveness
Sleeve packs are reusable, eliminating the constant need for disposable packaging materials. This reusability not only cuts down on per - trip costs but also promotes environmental sustainability by reducing waste. Over the long run, the initial investment in sleeve packs can be recouped through the savings from not having to purchase single - use packaging repeatedly.
3. Durability and Protection
These shipping systems are constructed to be robust and durable. They offer exceptional protection to the contents during transit. The rigid framework safeguards against impact damage, while the sleeve is often capable of bearing heavy loads, ensuring that products reach their destination in pristine condition.
4. Ease of Handling
Sleeve packs are designed to be lightweight and user - friendly. Features like handholds and simple - to - operate locks make the assembly and disassembly process a breeze. This simplicity reduces the labor time and effort required for packing and unpacking goods, thereby enhancing the operational efficiency of warehouses and distribution centers.
5. Versatility
Sleeve packs are highly versatile and can be employed for a wide range of products, spanning from automotive parts and e - commerce items to electronics and consumer goods. They are available in various sizes and can be customized to meet specific requirements, making them suitable for different industries. For instance, the ORBIS OPTEBULK 48×45″ footprint had its width slightly adjusted (from 45″ to 44.5″), allowing for two additional pallet positions to fit on a load.
Product parameter list
Product Name |
Pallet Box with Collar Sleeve |
Brand |
POLYFAVO |
Style |
Foldable Sleeve Pack |
Size |
1200mm x 1000mm |
Height |
860/1000/1640mm/ custom size |
Weight |
27.5kg |
Thickness |
10mm |
Litres |
860 |
Recycled Plastic |
No |
Volume (L) |
885L |
Material |
100% Recycled HDPE Base (Lid and Pallet) , and 100% virgin PP sleeve - Overall 67% recycled |
|
Can be printed with your branding
|
Yes |
Type |
Solid |
Printing |
On demand |
|
External Dimensions (mm)
|
1200mm x 1000mm x 1000mm |
|
Internal Dimensions (mm)
|
1148mm x 937mm x 824mm |
Pallet Outer Diameter (mm) |
1200mm x 1000mm |
Pallet Inner Diameter (mm) |
1140mm x 940mm |
Pallet Weight (kg) |
11kg |
Lid Weight (kg) |
10kg |
Pick Opening Dimension (mm) |
600mm x 300mm |
|
Folded Height (mm)
|
229mm |
|
Trailer/Truck Quantity
|
52 Full / 286 Folded |
|
Max Load per Box
|
500kg (Stacked 2:1) |
|
Pallet Stack Quantity
|
11 |
Pallet type |
9 feet, closed pallet deck |
|
Static (kg)
|
1000kg |
|
Dynamic (kg)
|
500kg |
Max load per box (kg) |
500kg |
Max stack load (kg) |
1000kg |
Optional features |
Pallet/Sleeve locks (Pallet interlocks with lid to keep stacked containers stable.) Sliding tabs snap into place securing sleeve, pallet and lid. Handles |
|
Foldable
|
Yes |
|
Rackable
|
No |
Base Configuration |
On nine feet |
Stocked color |
Grey, Black |
Available in other colors |
No |
Stacking layer |
1+2 |
Lid |
Included |
Features |
● Thermoformed plastic 4-way entry pallet and lid. ● ①Closed base and slides with drop door and lid②Two handles ● The groove design of the lids ensures stable stacking and is not easy to fall off. ● Up to 80% less volume on the return cycle ● More than 70% lighter than traditional pallet cages ● 100% recyclable ● Stackable ● Environmentally friendly ● Nestable ● Foldable, high folding ratio ● 100% recyclable ● Does not absorb liquids and easy to clean ● Long life span: 3+ years ● Full water and dust protection ● Resistant to most oils and acids ● Suitable for intelligent logistics turnover ● Efficient! Pack, stack, ship, fold, return - repeat! ● Thermal insulation ● No deformation ● Non-toxic ● Odorless ● High toughness ● Moisture resistant ● Bend resistant ● Flame retardant ● UV radiation resistant ● Dirt resistant ● Corrosion resistant ● High impact resistant ● Chemical resistant ● Weather resistant ● Stand wear and tear ● Anti-aging ● Rot resistant ● Pest resistant ● Fungus resistant ● Break resistant ● Easily cleaned ● Easy to handle |
Accessories |
1 HDPE lid(Closed base and slides with drop door and lid) 1 PP sleeve 1 HDPE pallet 2 Belt handles 4 Belt locks 1 Label holder 2 Velcros 1 Loading door |
Application |
logistics, packaging, storage, turn over |
Packaging |
Fold and Wrap |
Place of Origin |
China |
FOB port |
Qingdao |
OTHER PALLET & LID SIZE
Blow Molding Type
Model |
Pallet Outer Diameter |
Pallet Inner Diameter |
Pallet Weight |
Lid Weight |
STACKING LAYER |
LOADING WEIGHT |
BM8060 |
800*600 |
740*540 |
7kg |
5kg |
1+2 |
300KGS |
BM1110 |
1100*1000 |
1050*950 |
10kg |
7.5kg |
1+2 |
300KGS |
BM1111 |
1100*1100 |
1055*1055 |
10kg |
8kg |
1+2 |
300KGS |
BM1198 |
1150*985 |
1100*935 |
10kg |
9kg |
1+2 |
300KGS |
BM1515 |
1150*1150 |
1105*1105 |
10.5kg |
8.5kg |
1+2 |
300KGS |
BM1280 |
1200*800 |
1140*740 |
10kg |
9kg |
1+2 |
300KGS |
BM1210 |
1200*1000 |
1140*940 |
11kg |
10kg |
1+2 |
300KGS |
BM1211 |
1220*1150 |
1170*1105 |
11kg |
9kg |
1+2 |
300KGS |
BM1210-3 |
1230*1030 |
1170*970 |
11.5kg |
8.5kg |
1+2 |
300KGS |
BM1311 |
1350*1140 |
1290*1080 |
14kg |
12kg |
1+2 |
300KGS |
BM1411 |
1470*1140 |
1410*1080 |
15kg |
13kg |
1+2 |
300KGS |
BM1611 |
1600*1140 |
1540*1085 |
20kg |
13kg |
1+2 |
300KGS |
BM1811 |
1840×1130 |
1540*1080 |
23kg |
12kg |
1+2 |
300KGS |
BM2011 |
2070*1150 |
2035*1115 |
30kg |
16kg |
1+2 |
300KGS |
Injection Type
Model |
Pallet Outer Size |
Pallet Inner Size |
FOLDING HEIGHT |
LOADING WEIGHT |
STACKING LAYERS |
REMARK |
ZS1210 |
1200*1000 |
1130*930 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1280 |
1200*800 |
1130*730 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1198 |
1140*980 |
1070*910 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1111 |
1140*1140 |
1070*1070 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
1.Lashing Belts and handle belts can be added | ||||||
2. 9 feets/3 runners are for options. | ||||||
3. Steel Tube can be added in pallet and lid for higher loading weight. | ||||||
