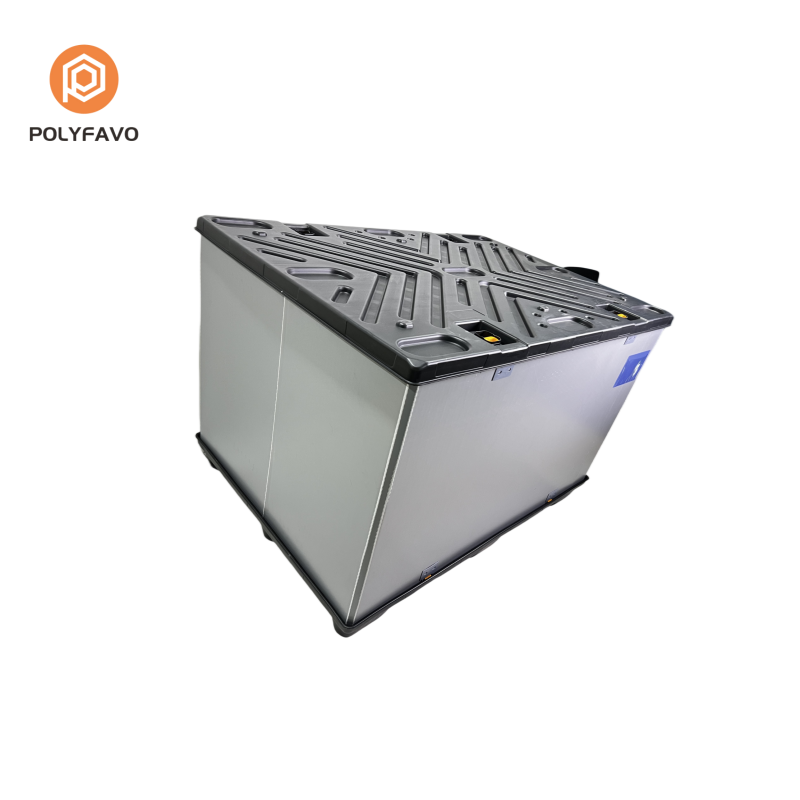

M Fold Pallet Sleeve

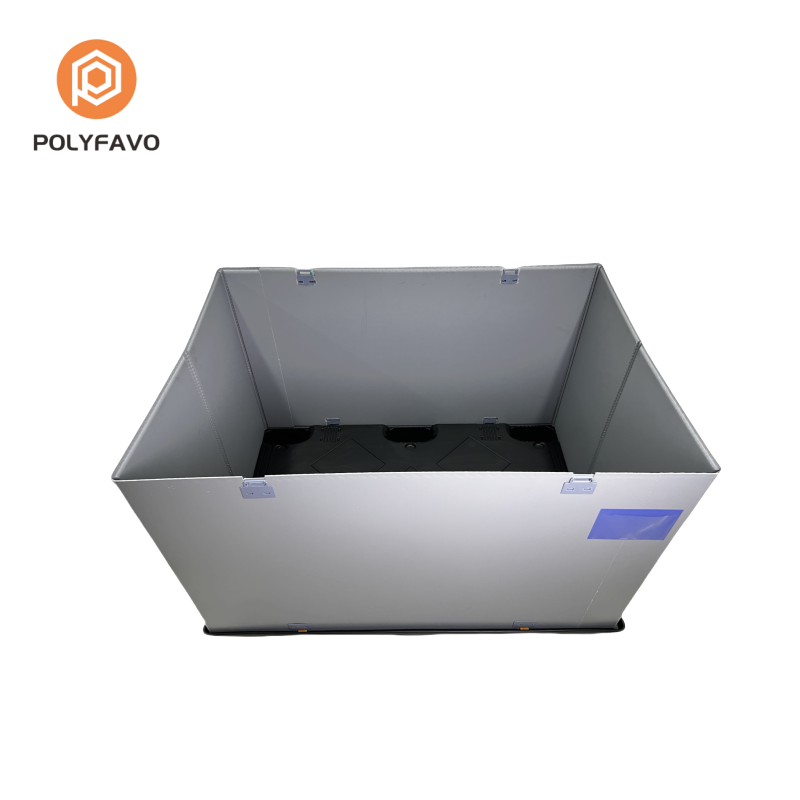

The M fold pallet sleeve is an innovative packaging solution designed for palletized goods. Made from durable and flexible plastic Polypropylene, it features a distinct M - shaped folding pattern. This design allows it to fit snugly around the pallet.
- Overview
- Recommended Products
The M fold pallet sleeve is an innovative packaging solution designed for palletized goods. Made from durable and flexible plastic Polypropylene, it features a distinct M - shaped folding pattern. This design allows it to fit snugly around the pallet.
It's easy to unfold and install. Once wrapped around the goods on the pallet, it provides comprehensive coverage from the bottom to the top. The sleeve safeguards the goods against dust, moisture, and potential impacts during transportation. In warehouses and logistics, it secures the cargo, preventing shifting. With customizable sizes and printing options, it suits various palletized items and can display brand logos and product details, streamlining the packaging process and enhancing brand visibility.
An M fold pallet sleeve is a foldable shipping container with creases on the shorter side that allows it to collapse for stacking and returning. M fold sleeves are used when the height of the sleeve is less than the pallet's internal width.
How do M fold pallet sleeves work?

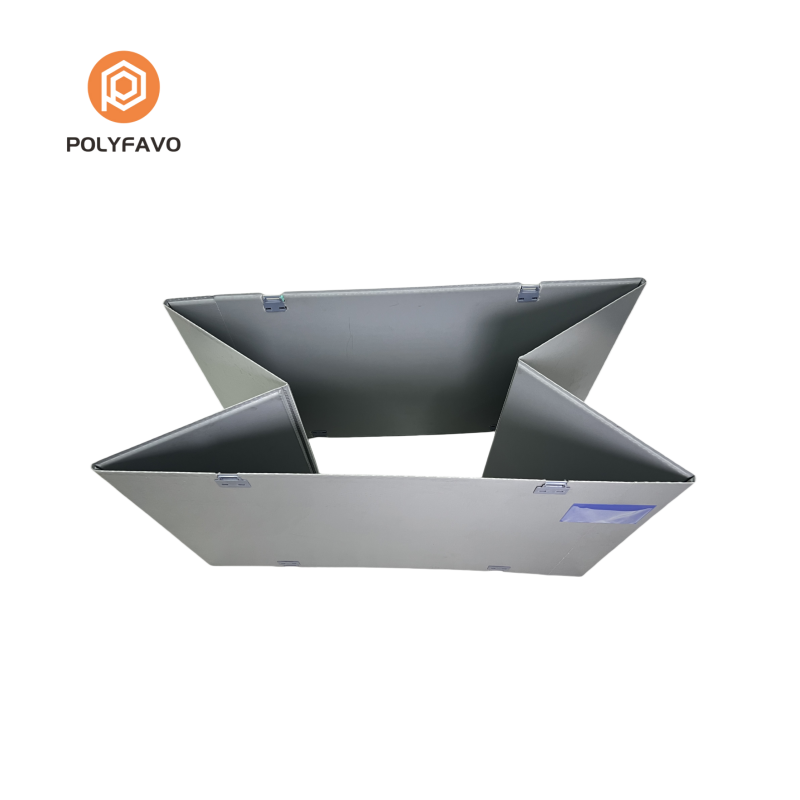

Hinges on the short sides of the sleeve allow it to fold up for easy stacking and returning
The creases on the shorter side of the sleeve enable it to be folded up for maximum efficiency
The sleeve width is less than or equal to the pallet width
Uses of M fold pallet sleeves
Used for shipping and storing a wide range of goods, parcels, and boxes
Used for packaging and transporting auto parts
Used for transporting electronic displays, components, and electrical car batteries
Used for storing and transporting machine parts
Used for medical storage
Other types of pallet sleeves: Z fold pallet sleeves, C sleeves, and I fold pallet sleeves.
Materials：
M Fold Pallet sleeves are typically made of polypropylene (PP) bubble guard board, which is lightweight, strong, and durable.
The Pallet Sleeve is fabricated from PP bubble guard board, which is composed of a high - strength and high - payload polypropylene structural material, commonly referred to as “honeycomb”. This material not only provides exceptional physical durability but also ensures a lightweight construction.
Owing to its advanced air - lock technology, the pallet sleeve demonstrates remarkable impact resistance and compressive strength. As a result, it effectively safeguards goods against potential damage during arduous transportation processes.
Notably, the pallet sleeve is available for individual sale. This allows customers the flexibility to procure only the components that precisely meet their specific requirements.
In addition, the use of this pallet sleeve leads to reduced maintenance costs and minimized waste generation.
Moreover, custom sizing options are provided to accommodate a wide range of diverse applications and customer needs.
Product parameter list
Product Name |
M Fold Pallet Sleeve |
Brand |
POLYFAVO |
Style |
Foldable Sleeve Pack |
Size |
1200mm x 1000mm |
Height |
860/1000/1640mm/ custom size |
Weight |
27.5kg |
Sleeve Pack Thickness |
8-12mm |
Litres |
860 |
Recycled Plastic |
No |
Volume (L) |
885L |
Material |
100% Recycled HDPE Base (Lid and Pallet) , and 100% virgin PP sleeve - Overall 67% recycled |
|
Can be printed with your branding
|
Yes |
Type |
Solid |
Printing |
On demand |
|
External Length (mm)
|
Lid/Pallet: 700-1470mm Sleeve pack: 600-1430mm |
External Width (mm) |
Lid/Pallet 400-1150mm Sleeve pack: 360-1110mm |
Exernal height |
500-1200mm |
|
Folded Height (mm)
|
229mm |
|
Trailer/Truck Quantity
|
52 Full / 286 Folded |
|
Max Load per Box
|
500kg (Stacked 2:1) |
|
Pallet Stack Quantity
|
11 |
Pallet type |
9 feet, closed pallet deck |
|
Static (kg)
|
1000kg |
|
Dynamic (kg)
|
500kg |
Max load per box (kg) |
500kg |
Max stack load (kg) |
1000kg |
Optional features |

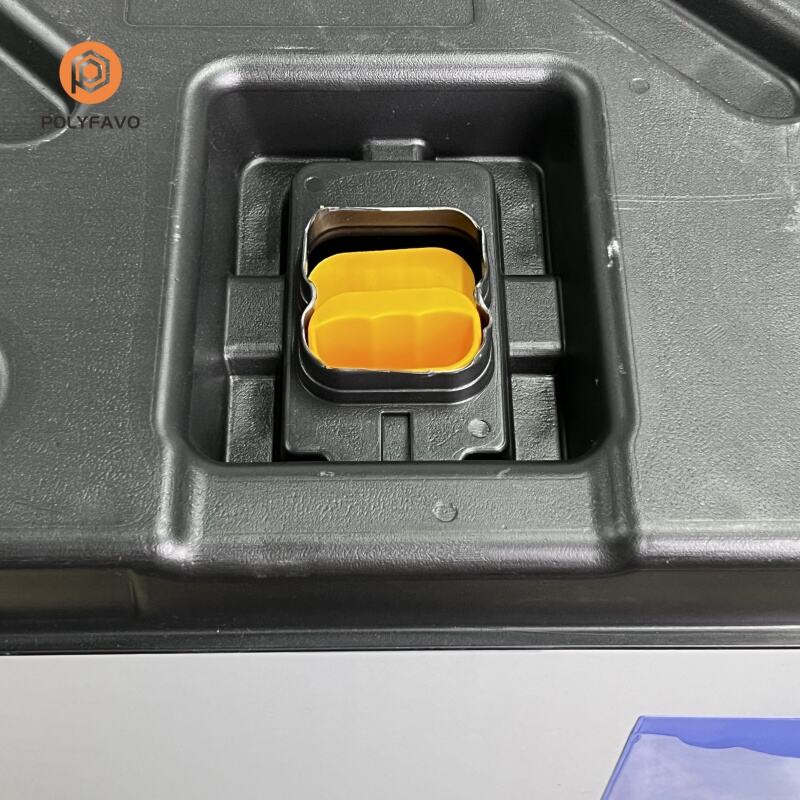

Pallet/Sleeve locks (Pallet interlocks with lid to keep stacked containers stable.) Sliding tabs snap into place securing sleeve, pallet and lid. Handles |
|
Foldable
|
Yes |
|
Rackable
|
No |
Base Configuration |
On nine feet |
Stocked color |
Grey, Black |
Available in other colors |
No |
Stacking layer |
1+2 |

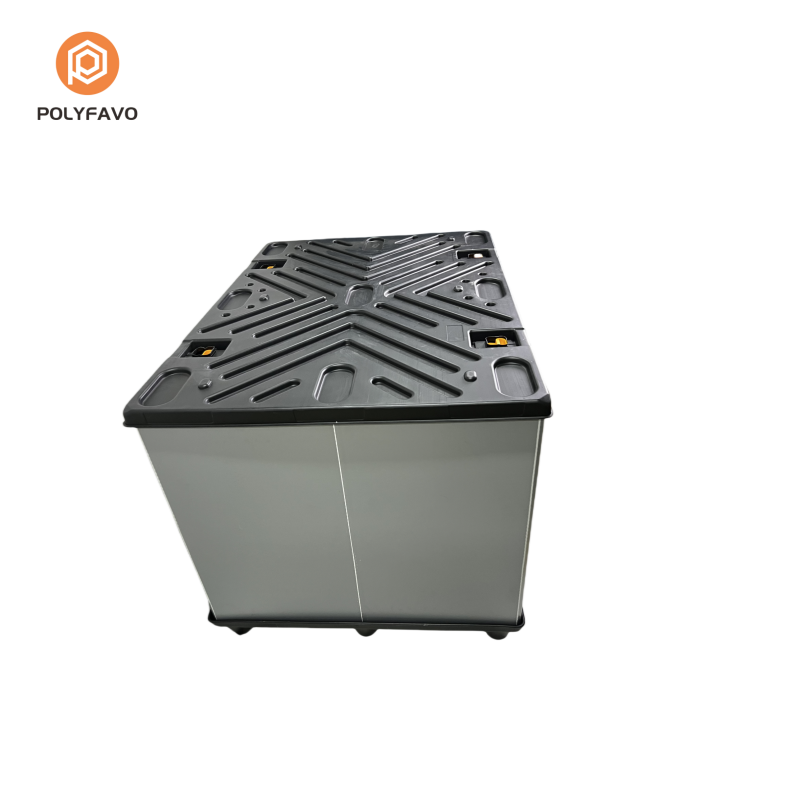

Lid |
Included |
Features |
● Thermoformed plastic 4-way entry pallet and lid. ● ①Closed base and slides with drop door and lid②Two handles ● The groove design of the lids ensures stable stacking and is not easy to fall off. ● Up to 80% less volume on the return cycle ● More than 70% lighter than traditional pallet cages ● 100% recyclable ● Stackable ● Environmentally friendly ● Nestable ● Foldable, high folding ratio ● 100% recyclable ● Does not absorb liquids and easy to clean ● Long life span: 3+ years ● Full water and dust protection ● Resistant to most oils and acids ● Suitable for intelligent logistics turnover ● Efficient! Pack, stack, ship, fold, return - repeat! ● Thermal insulation ● No deformation ● Non-toxic ● Odorless ● High toughness ● Moisture resistant ● Bend resistant ● Flame retardant ● UV radiation resistant ● Dirt resistant ● Corrosion resistant ● High impact resistant ● Chemical resistant ● Weather resistant ● Stand wear and tear ● Anti-aging ● Rot resistant ● Pest resistant ● Fungus resistant ● Break resistant ● Easily cleaned ● Easy to handle |
Accessories |
1 HDPE lid(Closed base and slides with drop door and lid) 1 PP sleeve 1 HDPE pallet 2 Belt handles 4 Belt locks 1 Label holder 2 Velcros 1 Loading door |
Application |
logistics, packaging, storage, turn over of auto parts, electronics, batteries, machine parts, and medical supplies |
Packaging |
Fold and Wrap |
Place of Origin |
China |
FOB port |
Qingdao |
OTHER PALLET & LID SIZE
Blow Molding Type
Model |
Pallet Outer Diameter |
Pallet Inner Diameter |
Pallet Weight |
Lid Weight |
STACKING LAYER |
LOADING WEIGHT |
BM8060 |
800*600 |
740*540 |
7kg |
5kg |
1+2 |
300KGS |
BM1110 |
1100*1000 |
1050*950 |
10kg |
7.5kg |
1+2 |
300KGS |
BM1111 |
1100*1100 |
1055*1055 |
10kg |
8kg |
1+2 |
300KGS |
BM1198 |
1150*985 |
1100*935 |
10kg |
9kg |
1+2 |
300KGS |
BM1515 |
1150*1150 |
1105*1105 |
10.5kg |
8.5kg |
1+2 |
300KGS |
BM1280 |
1200*800 |
1140*740 |
10kg |
9kg |
1+2 |
300KGS |
BM1210 |
1200*1000 |
1140*940 |
11kg |
10kg |
1+2 |
300KGS |
BM1211 |
1220*1150 |
1170*1105 |
11kg |
9kg |
1+2 |
300KGS |
BM1210-3 |
1230*1030 |
1170*970 |
11.5kg |
8.5kg |
1+2 |
300KGS |
BM1311 |
1350*1140 |
1290*1080 |
14kg |
12kg |
1+2 |
300KGS |
BM1411 |
1470*1140 |
1410*1080 |
15kg |
13kg |
1+2 |
300KGS |
BM1611 |
1600*1140 |
1540*1085 |
20kg |
13kg |
1+2 |
300KGS |
BM1811 |
1840×1130 |
1540*1080 |
23kg |
12kg |
1+2 |
300KGS |
BM2011 |
2070*1150 |
2035*1115 |
30kg |
16kg |
1+2 |
300KGS |
Injection Type
Model |
Pallet Outer Size |
Pallet Inner Size |
FOLDING HEIGHT |
LOADING WEIGHT |
STACKING LAYERS |
REMARK |
ZS1210 |
1200*1000 |
1130*930 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1280 |
1200*800 |
1130*730 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1198 |
1140*980 |
1070*910 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
ZS1111 |
1140*1140 |
1070*1070 |
240 |
500 |
5 |
9 FEET/3 RUNNERS |
1.Lashing Belts and handle belts can be added | ||||||
2. 9 feets/3 runners are for options. | ||||||
3. Steel Tube can be added in pallet and lid for higher loading weight. | ||||||
